Interface serie placa LCD 1602 y 2004 para Arduino

1602 2004 LCD Adapter Plate IIC I2C Interface for arduino
Disponibilidad: En Stock
SKU: 1056
SKP: P4133

Los precios no incluyen IVA.

Fotografías NO contractuales

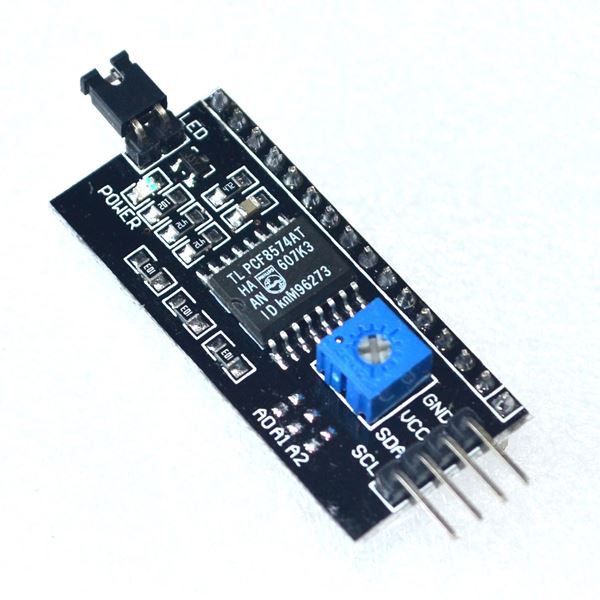

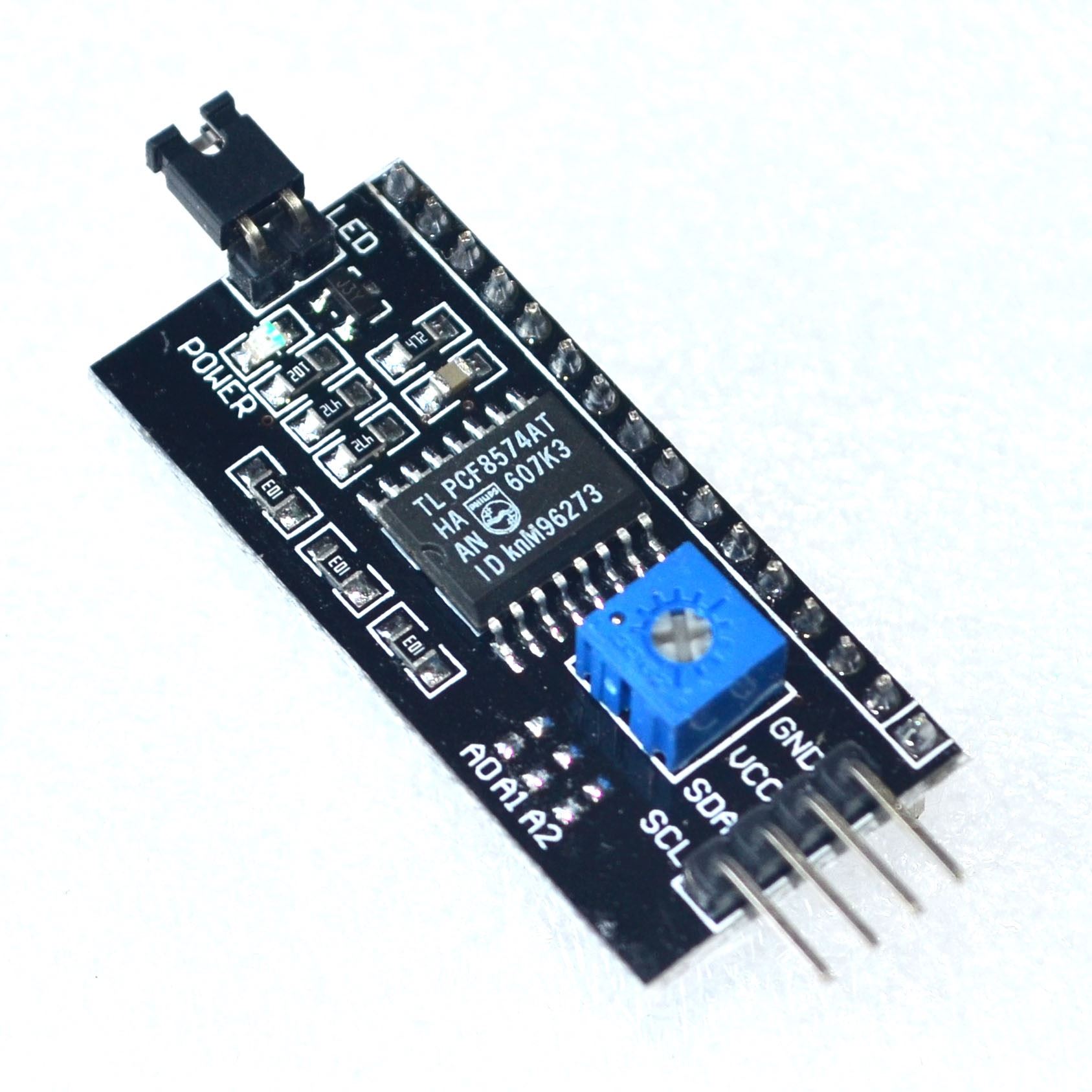

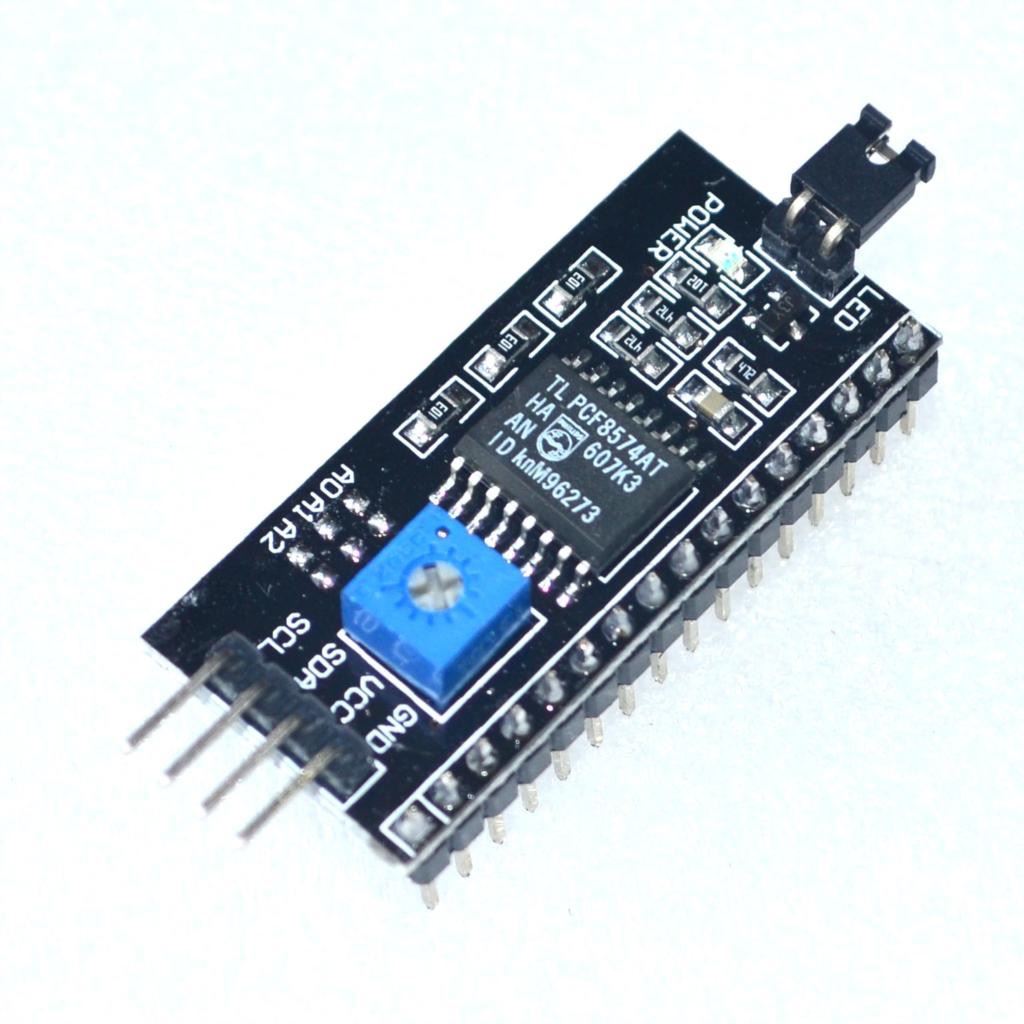

1602 2004 LCD Adapter Plate IIC I2C Interface i2c lcd adapter  for arduino

As the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
I2C Address: 0x27
Supply voltage: 5V
the backlight and contrast is adjusted by potentiometer
Come with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable
Compatible for 1602 LCD
